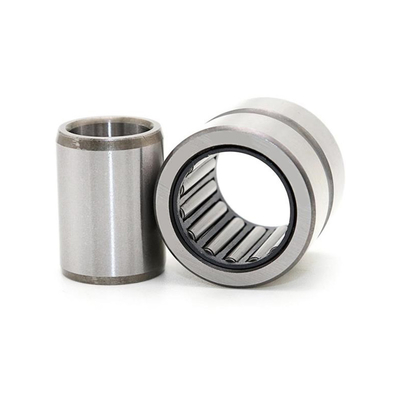

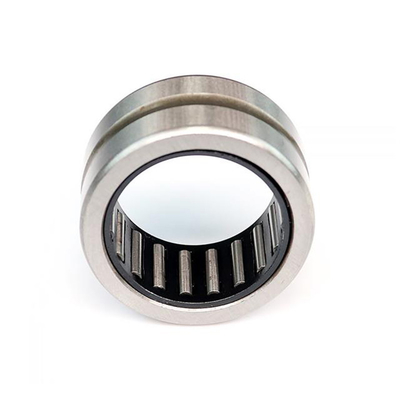

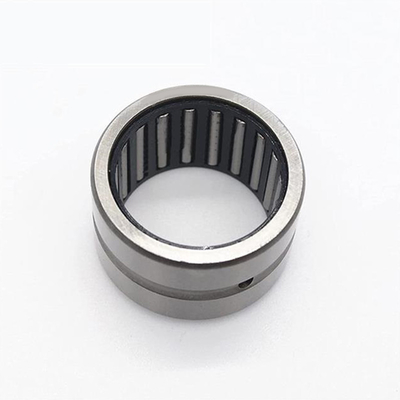

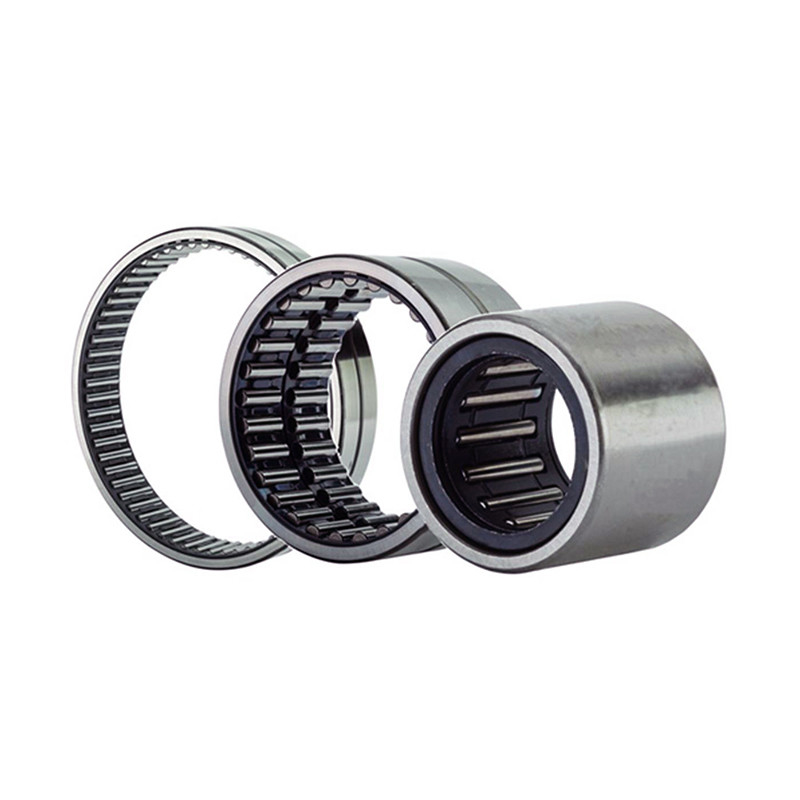

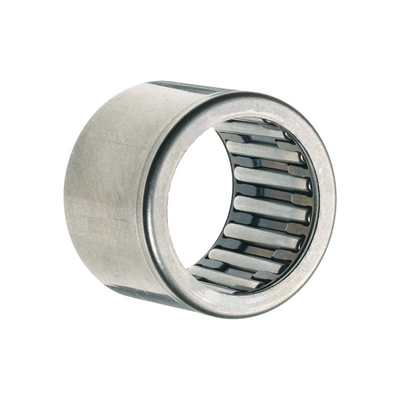

HFL2026 HFL 2026 Nadellager mit Hülle Einreihennadel OPEN Ölfett 19,992 20 mm
Produktdetails:
| Herkunftsort: | Shandong, China |
| Markenname: | HANSEL |
| Modellnummer: | HFL2026 HFL 2026 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 10 Stück |
|---|---|
| Preis: | $1.99/pieces 10-999 pieces |
| Lieferzeit: | Wenn vorrätig, in 7 Tagen oder je nach Bestellmenge |
|
Detailinformationen |
|||
| Größe der Bohrung: | 19.992 - 20 mm | Anwendbare Branchen: | Hotels, Bekleidungsgeschäfte, Baustoffgeschäfte, Produktionsbetriebe, Maschinenreparaturbetriebe, Le |
|---|---|---|---|
| Typ: | Nadel | Präzisionsbewertung: | P5 P6 |
| Versiegelungsart: | Geöffnet | Anzahl der Zeilen: | Einzelreihen |
| Material: | Chromstahl GCr15 | Anwendung: | Automobil.Traktor.Baumaschinen.Rollwerk |
| Dienstleistungen: | Service Soems Service.Design | Lagerbestand: | Rich Stocks |
| Merkmal: | Stabile Leistung: Niedrige Stimme | Lieferung: | 5-7 Tage |
| Qualität: | 100%ige Kontrolle | MOQ: | 100 Stück |
| Schmierung: | Ölfett | ||
Produkt-Beschreibung
Beschreibung des Produkts
Spezifikation
Trägerbezeichnung und Gewicht | Grenzdimensionen | Grundlastbewertung | Begrenzend Geschwindigkeit | ||||||||||||
Offene Enden | Gewicht | Schließend | Gewicht | Fw | D | C | Die Dynamisch | - Ich weiß. Statik | Erdöl | ||||||
Strom | g | Strom | g | mm | N | Umdrehungen pro Minute | |||||||||
HK0306TN | 1.5 | - | - | 3 | 6.5 | 6 | 1540 | 1070 | 40000 | ||||||
HK030610TN | 1.5 | - | - | 3 | 6 | 10 | 1540 | 1070 | 40000 | ||||||
HK030610.5TN | 1.5 | - | - | 3 | 6 | 10.5 | 1540 | 1070 | 40000 | ||||||
HK0408 TN | 1.6 | BK0408 TN | 1.8 | 4 | 8 | 8 | 1540 | 1070 | 40000 | ||||||
HK0509/TN | 2 | BK0509 | 2.1 | 5 | 9 | 9 | 2200 | 1790 | 36000 | ||||||
HK0606 | 2 | - | - | 6 | 10 | 6 | 1830 | 1790 | 32000 | ||||||
HK0608 | 2.1 | BK0608 | 2.2 | 6 | 10 | 8 | 1830 | 1550 | 32000 | ||||||
HK0609 | 2.2 | BK0609 | 2.6 | 6 | 10 | 9 | 2650 | 2400 | 30000 | ||||||
HK0610 | 2.2 | - | - | 6 | 10 | 10 | 1700 | 1500 | 29000 | ||||||
HK0612 | 2.5 | - | - | 6 | 10 | 12 | 1700 | 1500 | 29000 | ||||||
HK0709 | 2.3 | BK0709 | 2.9 | 7 | 11 | 9 | 2800 | 2150 | 27000 | ||||||
HK0711 | 2.4 | - | - | 7 | 11 | 11 | 2800 | 2150 | 28000 | ||||||
HK071112. Das ist der Fall.5 | 2.4 | - | - | 7 | 11 | 12.5 | 2800 | 2150 | 28000 | ||||||
HK07x12x08 | 2.4 | - | - | 7 | 12 | 8 | 3400 | 3150 | 37000 | ||||||
HK0808 | 2.7 | BK0808 | 3 | 8 | 12 | 8 | 2550 | 2400 | 21.000 | ||||||
HK0810 | 3 | BK0810 | 3.4 | 8 | 12 | 10 | 3700 | 3450 | 21000 | ||||||
HK08x14x10 | 5.35 | BK 08x14x10 | 5.8 | 8 | 14 | 10 | 3800 | 3950 | 25000 | ||||||
HK08x14x12 | 6.6 | - | - | 8 | 14 | 12 | 4100 | 4320 | 25000 | ||||||
HK0908 | 3 | BK0908 | 3.4 | 9 | 13 | 8 | 3650 | 4050 | 25000 | ||||||
HK0910 | 4 | BK0910 | 4.3 | ·9 | 13 | 10 | 4050 | 4250 | 25000 | ||||||
HK0911 | 4.1 | - | - | 9 | 13 | 11 | 4300 | 4700 | 25000 | ||||||
HK0912 | 4.6 | BK0912 | 4.9 | 9 | 13 | 12 | 5000 | 6000 | 25000 | ||||||
HK10x13x08 | 3.5 | - | - | 10 | 13 | 8 | 4100 | 4.800 | 20000 | ||||||
HK1010 | 4.1 | BK1010 | 4.3 | 10 | 14 | 10 | 3900 | 4800 | 19000 | ||||||
HK1012 | 4.8 | BK1012 | 5 | 10 | 14 | 12 | 5000 | 6300 | 19000 | ||||||
HK1015 | 6 | BK1015 | 6.2 | 10 | 14 | 15 | 6700 | 7800 | 19000 | ||||||
HK10x15x15 | 6.5 | - | - | 10 | 15 | 15 | 6800 | 8800 | 18000 | ||||||
HK10X16X10 | 6.5 | BK 10x16x10 | 6.8 | 10 | 16 | 10 | 6800 | 8800 | 18000 | ||||||
HK10X16X12 | 7.5 | - | - | 10 | 16 | 12 | 6800 | 8800 | 18000 | ||||||
HK10x16x15 | 11 | - | - | 10 | 16 | 15 | 6800 | 8800 | 19000 | ||||||
HK10x17x15 | 11.5 | - | - | 10 | 17 | 15 | 7200 | 8000 | 19000 | ||||||
HK10x18x12 | 8.5 | - | - | 10 | 18 | 12 | 7200 | 8000 | 19000 | ||||||
HK1208 | 3.3 | - | - | 12 | 16 | 8 | 7200 | 8000 | 19000 | ||||||
HK1210 | 4.6 | BK1210 | 5.2 | 12 | 16 | 10 | 4150 | 5800 | 19000 | ||||||
HK1212 | 5.6 | BK1212 | 6.2 | 12 | 16 | 12 | 3800 | 5100 | 15000 | ||||||
HK12x17x12 | 7.5 | - | - | 12 | 17 | 12 | 5100 | 7000 | 15000 | ||||||
HK12x17x15 | 9.5 | - | - | 12 | 17 | 15 | 5100 | 7000 | 15000 | ||||||
HK12x17x18 | 11 | - | - | 12 | 17 | 18 | 5100 | 7000 | 15000 | ||||||
HK12x18x12 | 9.1 | BK 12x18x12 | 10.3 | 12 | 18 | 12 | 5500 | 6300 | 17000 | ||||||
HK12x18x14 | 10.6 | - | - | 12 | 18 | 14 | 6500 | 6300 | 15000 | ||||||
HK12x19x12 | 10 | - | - | 12 | 19 | 12 | 6800 | 7400 | 15000 | ||||||
HK1312 | 8.9 | BK1312 | 11.2 | 13 | 19 | 12 | 6200 | 7100 | 17000 | ||||||
HK1410 | 8.3 | BK1412 | 12.1 | 14 | 20 | 10 | 6700 | 7000 | 16000 | ||||||
HK1412 | 10.5 | - | - | 14 | 20 | 12 | 6800 | 7500 | 16000 | ||||||
HK1416 | 13.9 | - | - | 14 | 20 | 16 | 7300 | 9000 | 14000 | ||||||
HK15x20x12 | 8.4 | - | - | 15 | 20 | 12 | 5800 | 6000 | 14000 | ||||||
HK15x20x16 | 11.4 | - | - | 15 | 20 | 16 | 6000 | 6200 | 14000 | ||||||
HK15×20x20 | 13.8 | - | - | 15 | 20 | 20 | 6100 | 6400 | 14000 | ||||||
HK1512 | 11.1 | BK1512 | 12.7 | 15 | 21 | 12 | 7000 | 8400 | 14000 | ||||||
HK1514 | 12.7 | - | - | 15 | 21 | 14 | 8500 | 10400 | 13000 | ||||||
HK1515 | 14.2 | - | - | 15 | 21 | 15 | 9100 | 11400 | 13000 | ||||||
HK1516 | 15 | BK1516 | 16.5 | 15 | 21 | 16 | 9800 | 11400 | 14000 | ||||||
HK1522 | 20.4 | BK1522 | 22 | 15 | 21 | 22 | 10400 | 16500 | 14000 | ||||||
HK15 × 22 × 12 | 12.5 | - | - | 15 | 22 | 12 | 14300 | 18400 | 13000 | ||||||
HK15 x 22 x 12.5 | 13.5 | - | - | 15 | 22 | 12.5 | 14300 | 18400 | 13000 | ||||||
HK16×21x06 | 5.5 | - | - | 16 | 21 | 6 | 4200 | 5300 | 12000 | ||||||
HK16x21x09 | 7.5 | - | - | 16 | 21 | 9 | 4400 | 5600 | 12000 | ||||||
HK1612 | 11.7 | BK1612 | 13.8 | 16 | 22 | 12 | 7100 | 9200 | 14000 | ||||||
HK1614 | 14.4 | - | - | 16 | 22 | 14 | 8800 | 9900 | 12000 | ||||||
HK1616 | 15.8 | BK1616 | 17.6 | 16 | 22 | 16 | 10100 | 14300 | 14000 | ||||||
HK1617 | 18 | - | - | 16 | 22 | 17 | 12900 | 17200 | 12000 | ||||||
HK1622 | 21.7 | BK1622 | 23.4 | 16 | 22 | 22 | 11100 | 17400 | 14000 | ||||||
HK1712 | 12.2 | BK1712 | 14.5 | 17 | 23 | 12 | 6900 | 9300 | 13000 | ||||||
HK1714 | 14 | - | - | 17 | 23 | 14 | 6800 | 10200 | 10000 | ||||||
HK1716 | 15.9 | - | - | 17 | 23 | 16 | 8500 | 12500 | 10000 | ||||||
HK1718 | 19 | - | - | 17 | 23 | 18 | 9500 | 10600 | 10000 | ||||||
HK17×24x15 | 17 | - | - | 17 | 24 | 15 | 11200 | 12800 | 10000 | ||||||
HK17×25x14 | 17.7 | - | - | 17 | 25 | 14 | 13100 | 14700 | 10000 | ||||||
HK17x25x18 | 23.5 | - | - | 17 | 25 | 18 | 9500 | 10600 | 11000 | ||||||
HK1812 | 13.1 | BK1812 | 14.9 | 18 | 24 | 12 | 7100 | 9900 | 12000 | ||||||
HK1814 | 15 | - | - | 18 | 24 | 14 | 9000 | 13200 | 12000 | ||||||
HK 1816 | 17.5 | BK1816 | 19.9 | 18 | 24 | 16 | 10600 | 15300 | 12000 | ||||||
HK1825 | 20 | - | - | 18 | 24 | 25 | 10600 | 15300 | 12000 | ||||||
HK2010 | 11.8 | BK2010 | 14 | 20 | 26 | 10 | 5900 | 7200 | 10000 | ||||||
HK2012 | 14.1 | BK2012 | 16.7 | 20 | 26 | 12 | 7600 | 10100 | 10000 | ||||||
HK2014 | 15.7 | - | - | 20 | 26 | 14 | 9700 | 18100 | 9000 | ||||||
HK2016 | 19.3 | BK2016 | 22.3 | 20 | 26 | 16 | 11700 | 29100 | 10000 | ||||||
HK2018 | 23.3 | - | - | 20 | 26 | 18 | 7900 | 12800 | 9000 | ||||||
HK2020 | 24.1 | BK2020 | 27.1 | 20 | 26 | 20 | 13700 | 24000 | 10000 | ||||||
HK2025 | 28 | - | - | 20 | 26 | 25 | 9100 | 14800 | 9900 | ||||||
HK2030 | 34.7 | BK2030 | 37.4 | 20 | 26 | 30 | 21800 | 40000 | 10100 | ||||||
HK20 × 27 × 18 | 78 | - | - | 20 | 27 | 18 | 26000 | 47200 | 9900 | ||||||
HK20 × 27 × 20 | 82 | - | - | 20 | 27 | 20 | 26300 | 47800 | 9900 | ||||||
HK20 × 27 × 30 | 94 | - | - | 20 | 27 | 30 | 28500 | 48800 | 9900 | ||||||
HK20 × 28 × 16 | 28.5 | - | - | 20 | 28 | 16 | 29600 | 49800 | 9900 | ||||||
HK20x29x18 | 41 | - | - | 20 | 29 | 18 | 30900 | 54600 | 9900 | ||||||
HK227.5 | 11.8 | - | - | 22 | 28 | 7.5 | 7200 | 9500 | 10010 | ||||||
HK2210 | 12.3 | - | - | 22 | 28 | 10 | 7200 | 9500 | 10010 | ||||||
HK2212 | 15 | BK2212 | 18.1 | 22 | 28 | 12 | 8100 | 10400 | 10010 | ||||||
HK2220 | 26.2 | BK2220 | 29.9 | 22 | 28 | 20 | 14500 | 25000 | 10010 | ||||||
HK2225 | 37 | - | - | 22 | 28 | 25 | 18100 | 31500 | 9000 | ||||||
HK22 mal 28.5 mal 9.5 | 13 | - | - | 22 | 28.5 | 9.5 | 7200 | 9500 | 10010 | ||||||
HK22x29x10 | 12.5 | - | - | 22 | 29 | 10 | 7200 | 9500 | 10010 | ||||||
HK2512 | 20 | BK2512 | 23.2 | 25 | 32 | 12 | 10000 | 14200 | 9000 | ||||||
HK2516 | 27.3 | BK2516 | 31 | 25 | 32 | 16 | 13600 | 20000 | 9000 | ||||||
HK2518 | 28.2 | - | - | 25 | 32 | 18 | 17500 | 25800 | 9000 | ||||||
HK2520 | 34.1 | BK2520 | 38.7 | 25 | 32 | 20 | 17900 | 30000 | 9000 | ||||||
HK2525 | 40 | - | - | 25 | 32 | 25 | 22200 | 36700 | 9000 | ||||||
HK25x33x10 | 17 | - | - | 25 | 33 | 10 | 34800 | 69600 | 9000 | ||||||
HK25x33x15 | 27.4 | - | - | 25 | 33 | 15 | 35700 | 70000 | 9000 | ||||||
HK25x35x20 | 44.9 | - | - | 25 | 35 | 20 | 36100 | 78650 | 9000 | ||||||
HK2812 | 29 | - | - | 28 | 35 | 12 | 15400 | 22500 | 8700 | ||||||
HK2816 | 30.1 | BK2816 | 34.1 | 28 | 35 | 16 | 15400 | 22500 | 8700 | ||||||
HK2818 | 31.7 | - | - | 28 | 35 | 18 | 18500 | 29300 | 8700 | ||||||
HK2820 | 37.6 | BK2820 | 43 | 28 | 35 | 20 | 18900 | 32000 | 8700 | ||||||
HK3012 | 24 | BK3012 | 27.9 | 30 | 37 | 12 | 10100 | 16200 | 8100 | ||||||
HK3014 | 28 | - | - | 30 | 37 | 14 | 13000 | 21000 | 8100 | ||||||
HK3016 | 32 | BK3016 | 37.1 | 30 | 37 | 16 | 15200 | 27000 | 8100 | ||||||
HK3018 | 33.6 | - | - | 30 | 37 | 18 | 19200 | 31500 | 8100 | ||||||
HK3020 | 40.1 | BK3020 | 46.5 | 30 | 37 | 20 | 19700 | 33500 | 8100 | ||||||
HK3026 | 52.9 | BK3026 | 59.4 | 30 | 37 | 26 | 24000 | 50000 | 8100 | ||||||
HK3038 | 76.1 | BK3038 | 82.8 | 30 | 37 | 38 | 32500 | 74000 | 8100 | ||||||
HK30x38x12 | 28 | - , | - | 30 | 38 | 12 | 38100 | 80000 | 8100 | ||||||
HK30x38x16 | 32.7 | - | - | 30 | 38 | 16 | 39000 | 82000 | 8100 | ||||||
HK30x38x24 | 49 | - | - | 30 | 38 | 24 | 39910 | 88800 | 8100 | ||||||
HK30x38x32 | 69 | - | - | 30 | 38 | 32 | 38890 | 88700 | 8100 | ||||||
HK32 × 38 × 11 | 17 | - | - | 32 | 38 | 11 | 19700 | 43200 | 7800 | ||||||
HK32x40x32 | 72.7 | - | - | 32 | 40 | 32 | 27990 | 59890 | 7100 | ||||||
HK3512 | 27.7 | BK3512 | 32.9 | 35 | 42 | 12 | 12100 | 19300 | 7100 | ||||||
HK3516 | 36.9 | BK3516 | 43.8 | 35 | 42 | 16 | 15700 | 27500 | 7100 | ||||||
HK3520 | 46.1 | BK3520 | 54.8 | 35 | 42 | 20 | 20800 | 41000 | 7100 | ||||||
HK35 × 43 × 16 | 37 | - | - | 35 | 43 | 16 | 24200 | 47100 | 6200 | ||||||
HK35x43x25 | 60.5 | - | - | 35 | 43 | 25 | 24440 | 48200 | 6200 | ||||||
HK35x43x32 | 80 | - | - | 35 | 43 | 32 | 24870 | 48880 | 6200 | ||||||
HK35 × 45 × 12 | 31 | - | - | 35 | 45 | 12 | 24870 | 48880 | 6200 | ||||||
HK36x42x12 | 23 | - | - | 36 | 42 | 12 | 15000 | 21000 | 6000 | ||||||
HK38x48x30 | 102 | - | - | 38 | 48 | 30 | 16100 | 24100 | 6300 | ||||||
HK4012 | 31.1 | BK4012 | 38.2 | 40 | 47 | 12 | 14000 | 24300 | 6300 | ||||||
HK4016 | 41.4 | BK4016 | 51 | 40 | 47 | 16 | 20000 | 38500 | 6300 | ||||||
HK4020 | 51.8 | BK4020 | 62 | 40 | 47 | 20 | 25500 | 52000 | 6300 | ||||||
HK40x50x32 | 114.3 | - | - | 40 | 50 | 32 | 23000 | 42000 | 6000 | ||||||
HK40×50x38 | 130.8 | - | - | 40 | 50 | 38 | 24100 | 43000 | 6000 | ||||||
HK4516 | 46.2 | BK4516 | 56 | 45 | 52 | 16 | 19300 | 38000 | 5800 | ||||||
HK4520 | 56 | BK4520 | 72 | 45 | 52 | 20 | 22000 | 51000 | 5800 | ||||||
HK45x53x20 | 135 | - | - | 45 | 53 | 20 | 27600 | 61000 | 5300 | ||||||
Verwandte Produkte
Unternehmensprofil
Shandong Ah-Factory Import & Export Co., Ltd.
Ausstellung
Verpackung und Lieferung
Häufig gestellte Fragen
F1:Sind Sie eine Fabrikfirma oder eine Handelsgesellschaft?
Wir haben unsere eigene Fabrik, unser Typ ist Fabrik + Handel.
Q2: Können Sie OEM und Anpassung akzeptieren?
Ja, wir können es für Sie nach der Probe oder Zeichnung anpassen.
F3: Was ist die MOQ Ihres Unternehmens?
Unser MOQ beträgt normalerweise 10 Stück, so oder so ist ein niedrigerer MOQ auch mit etwas höheren Kosten akzeptabel, da je mehr Sie kaufen, desto günstiger können Sie bekommen.
F4: Können Sie mir das Material Ihres Lagers sagen?
Wir haben Chromstahl, Edelstahl und Keramik.
F5: Können Sie einen Dienst von Tür zu Tür anbieten?
Ja, per Express ((DHL, FedEx, TNT, EMS,4-10 Tage bis zu Ihrer Stadt.)
F6: Können Sie mir die Lieferzeit Ihrer Türen sagen?
Wenn auf Lager, in 7 Tagen oder je nach Bestellmenge.
Möchten Sie mehr über dieses Produkt erfahren?
